Dex
The Dex is part of the Disorient Express
General Dex Information
Name: Disorient Dex
Purchased by Disorient in July 2005
Make: Harvester International
Model:
Year: 1985
VIN:
2008
The DV8 DeX will be a covered pioneer wagon for the American Dream theme.
Ideas
-MUCH smaller sound system using Mackie monitors, perhaps on the inside only; perhaps one on the roof for the lounge

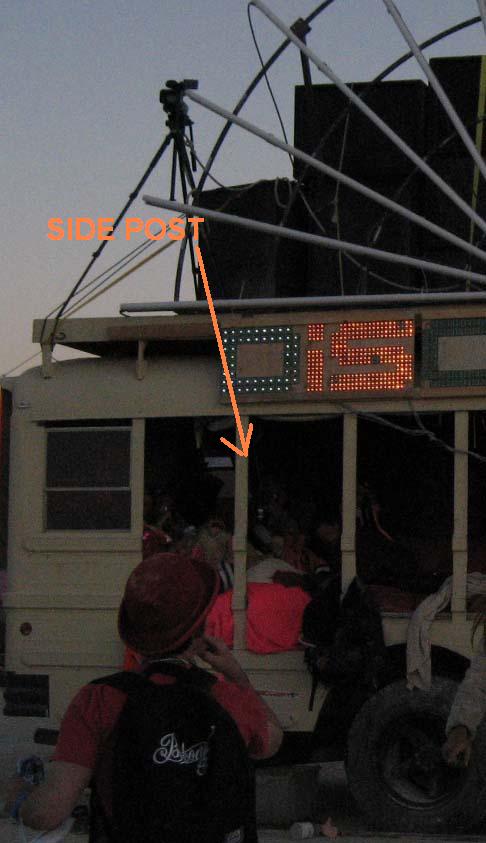

-flagpole mounts with 1" PVC pipes coming out at 25 degree angles from the wooden sides of the roof rack
-ability to use roof covering as daytime shade similar to an RV awning
-lighting truss mounted on the fascia above the lounge cut-outs. It can be ratchet-strapped or chained to the side of the roof rack where we normally mount the Small Sign
-some kind of wagon wheel representations
-not trailering a generator; mounting one on the front or rear of the DeX and perhaps another one on the roof
-perhaps creating simple barriers around the roof, with foam padding, covered by stapled cloth to create a chillspace and increase the people capacity
Images and Links
Roof Covering Materials:
1" PVC 10' @ $3.55 ea.
Aluminum residential flagpole bracket $4.50-5.50 ea.
Repairs needed
- Air brakes
- Several lights are broken
- Alarm of the compressed air tanks does not stop even when the tanks are full.
- Alternate gas Tank needs to be emptied a bit (-=7=-)
- Alternate gas tank (or the line?) has a whole in it which need to be repaired (-=7=-)
- Internal lights need to be checked (-=7=-)
- Would be nice to have some type of small handle on the main door
Wayne's did good work for cheap in August 2007. For air brakes they recommended a truck stop just outside Reno going towards Wadsworth on the Interstate.
2007
Repairs needed:
- Alarm of the compressed air tanks does not stop even when the tanks are full.
Pauly a very helpful guy from Sunshine Service (775-358-5486 did Dex lube, oil and filter service in 2006 for $201.14) recommends Wayne's Automotive for oil/lube change. Call Pauly for more info if needed.
Dex has an appointment for lube/oil service at Wayne's for Monday August 20th. Wayne's doesn't do air-breaks but will recommend a place.
Dex exterior
Puddle discussion: Mobile units

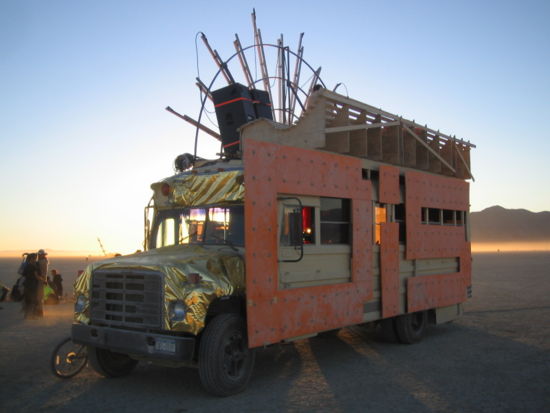

The Dex carries Disorient Signs, art installations and lounge to deep playa destinations during Burning Man 2007.
The right side of the Dex opens-up onto the Playa and carries the Small Sign. This 10-foot opening allows perceptual connections between inside and outside. A large step made of speakers allows guests to jump in and out of the lounge when the bus is stopped. DEXers also like to dance on that speaker stack.
On its left side, the Dex carries three letters from the DISORIENT Sign.
Depending on which letters are added access to the gas tank and battery can be blocked. Jumper cables (leads) must be clamped and secured to the battery before putting the letters on. In addition, a large flexible tube with a large attached funnel must be secured to just outside of the gas tank entry valve so that when adding gas there is no issue with accessing the gas tank to add fuel and one only needs to open the tank and insert the tube.
In 2005 and 2006, the last six letters of the Sign were installed in front of the DISORIENT camp. In 2007, those letters are installed on the new addition to the Disorient Express: the Rex.

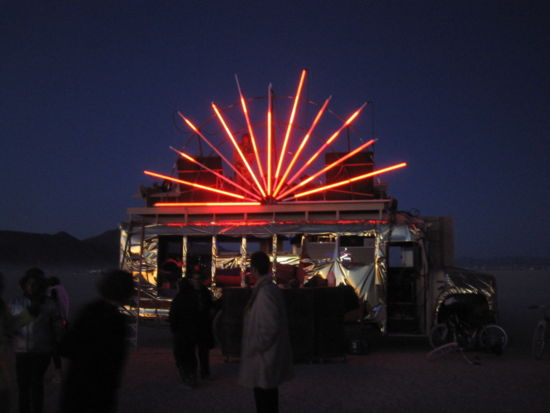

A Firmament-inspired light sculpture is installed on the roof along with other sculptures/installations by members of Disorient including inflatables by Anakin Koenig. A rack is especially designed to securely hold those pieces. The bus is equiped with a comfortable DJ booth (in a private area in the front), Disorient's sound system and a public lounge in the back.
The Dex changes location several times during Burning Man but it is not meant to be a transportation unit like the Nautilus. It is a mobile installation that changes context. It is docked next to large-scale installation and gives Disorienters and Burners the opportunity to experience sculptures and the deep playa for extended periods of time. The Dex paired with selected playa installations creates a dramatic yet comfortable environment that includes dance floor, chill-out area and many art works by members of the Disorient collective.
The body of the DISORIENT EXPRESS is covered with gold mylar.
Explore the deep playa in the comfort of your own puddle with the DISORIENT EXPRESS.
Dex Interior
Early drawings
Here is the inside of the Disorient Express deployed without outside additional snap-on modules.
Click to enlarge
When in travelling mode:
- the stage/stairs fold-up and close the large opening on the right side of the bus;
- the part of the circular sofa that is outside the volume of the bus on the left side collapses or slides-in;
- the dj booth slides back inside the volume of the bus.
The storage area in the back below the zero-gravity chair is accessible from the door (not shown on these drawings) at the back of the bus.
The front of the bus is a private area with individual lockers for Disorienters.
Dancing poles around the dj booth help the bus stay structurally sound.
Dex racks
Early drawings
There are modular racks on top of and under the Dex. The Sign and the snap-on modules will be attached to these racks.
Click to enlarge
Both racks (above and under the vehicle) are built on the same principle. Each rack is made of three hollow metallic poles (6" x 4" section) that cover the entire length of the vehicle. Those poles are connected to each other and attached to strong metal beams that hold he body of the bus. Each pole has slots (every foot or so) on its sides, large enough to slide two 2x4 wooden studs next to each other.
The 2x4 studs of variable length (from 8' to 12') slide in and out of both sides of the vehicle allowing large and heavy equipment/artworks to be installed on top and on the sides of the vehicle.
Possible finishes for the outside of the Dex:
- matte black (so the support disappears in the night and the attached artworks and the inside are more distinct)
- gold
- matte playa color (like the Borg containers)
