''Managed by [[User:Rumble|Rumble]], Seven and [http://www.flyvision.org/the_eye/ The Eye]<br />
==D24==
''Puddle discussion''<nowiki>: </nowiki>[http://puddle.disorient.info/viewforum.php?f=3 Music and Events]<br />
===20240710 Operation Deep Housecall===
<br />
<I>James Patrick, ItsJohnFoster, Mandy, Kmak, So On It and Brinksman</I>.<BR>
We accept sound equipment donations.<br />
Discussion: https://discord.com/channels/932718953892040734/1114552806771277915/1260304384043253822<BR>
<br />
Goals:<BR>

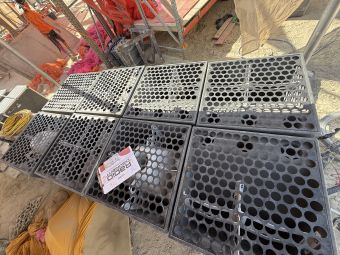

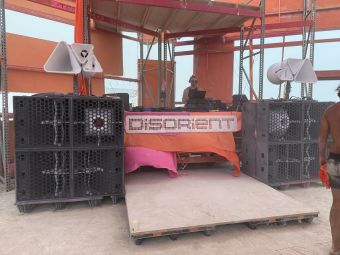

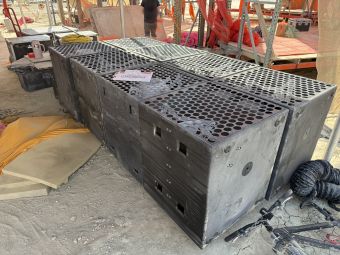

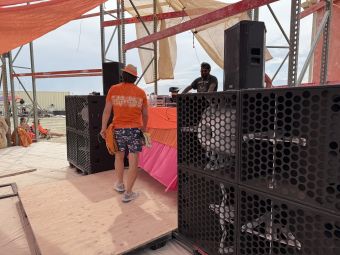

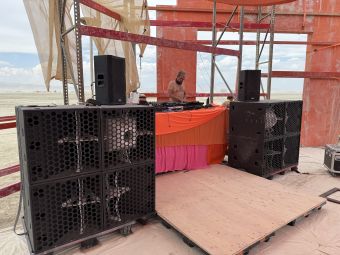

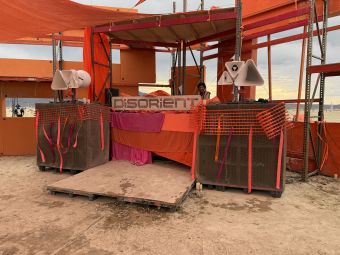

==Sound Systems==
1. Gather, clean and test Yoga sound system.<BR>
===CROWN/CUSTOM===
2. Store system in Reno container to be shipped to playa.<BR>
Touring rig originally designed by [http://www.clair-audio.com/ Clair Brothers Systems]<BR>


[[Image:Bigsoundwideshot.jpg|800px]]
Yoga sound system inventory and configurations diagrams:<BR>
https://drive.google.com/drive/folders/1PMgM3mOXFagq4drG_HepZ5uflG_RMx6u?usp=sharing<BR>


====Racks====

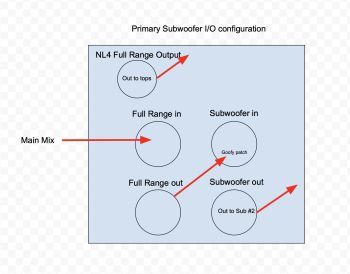

[[Image:20240712.YogaSoundSystemBuildDiagram.jpg|370px]] [[Image:20240712.YogaSoundSystemWiringConfig.jpg|350px]] [[Image:20240712.YogaSoundSystemInventory.1.jpg|800px]]<BR>
[[Image:IMG_7258.JPG|200px]] [[Image:Crown_macrotech_back.jpg|100px]]<br />
* 3 Racks - 20U, 16&quot; deep.  20&frac12;&quot; internal rack width, including ventilation clearance. 3&frac12;&quot; casters. 22&frac12;&quot; W x 44&frac12;&quot; H x 27&quot; D - ~15.65 cu. ft. each
* [http://www.xta.uk.com/dp226_features.htm XTA Electronics DP-226 Loudspeaker Management] (crossover) (available now: 2/2)
* [http://www.xta.uk.com/dp324_features.htm XTA Electronics DP-324 Dynamic Processor] (available now: 1/1)
* [http://www.crownaudio.com/pdf/legacy/130252.pdf Crown Macro Tech 1200] (amps) (available now: 20/20) <br />


===="Frogs"====
[http://www.ymesystems.com/en/products/view.aspx?id=97 YG 75]<BR>
4-way speakers (available now: 8/8) (45"h x 30"w x 18.5"d ~= 14.5 cu. ft.)
[http://www.ymesystems.com/en/products/view.aspx?id=99 YG 30AD]<BR>
* Low - [http://www.jblpro.com/pub/obsolete/2240gh.pdf JBL 2240H] (30 Hz - 2 kHz)
[http://www.ymesystems.com/en/products/view.aspx?id=101 YG SUBA]<BR>
* 2x Low-Mid (in parallel) - [http://www.jblpro.com/pub/components/eseries.pdf JBL E120-8] (50 Hz - 6 kHz)
[http://www.ymesystems.com/en/products/view.aspx?id=188 YG 12MA]<BR>
* Hi-Mid horn JBL 2385 / [http://www.jblpro.com/pages/pub/components/2385a.pdf 2385A] (500 Hz - 16 kHz)
* 2x Tweeter (in series) - ?
<br />
The enclosure has two Speakon NL8 8-pole panel connectors for daisy-chaining them. Each pair drives each of the components. Pair #1 is connected the low driver, 2 - Low-Mid (in parallel) , 3 - Hi-Mid, and 4 to the tweeter pair (in parallel)

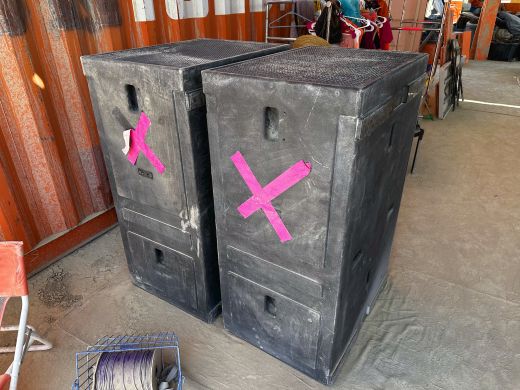

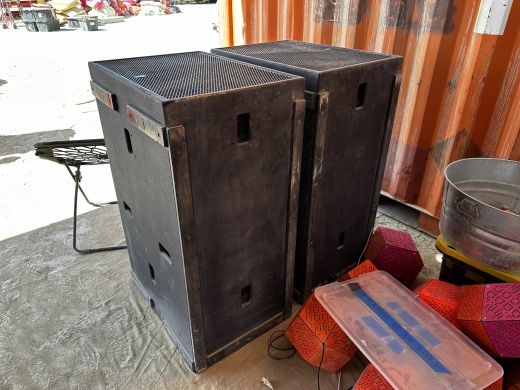

Two Frogs have dead 18&quot; woofers - <span style="color:yellow;">replaced</span><br />
One 12&quot; Lo-Mid's diaphragm is cracked - <span style="color:yellow;">replaced</span>.


====Subs====
[[Image:20240711.YogaSoundSystemCableInventory.1.jpg|800px]] [[Image:20240711.YogaSoundSystemCableInventory.2.jpg|350px]] [[Image:20240711.YogaSoundSystemCableInventory.3.jpg|350px]]
(available now: 8/16) (35.5"h x 25.5"w x 24"d ~= 12.6 cu.ft)<br />
* [http://www.jblpro.com/pages/pub/components/2241.pdf JBL 2241H]
The cabinet has two Speakon NL8 8-pole panel connectors for daisy-chaining them. The subs are organized in four groups on the speaker signal NL8 bus; the subs in each group are connected to only one of the 4 pairs. Four amps can power the four groups of subs by using one NL8 Speakon cable daisy-chain - each amp will be connected to one of the pairs.


====Cables====

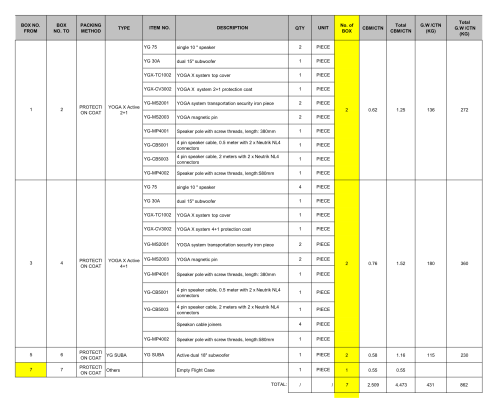

[[Image:GKRSoundSystem2017PackinList.png|500px]]<BR>
[[Media:SoundSystem_cabling_diagram_v.1.1.pdf|Cabling diagram]]
=====Patch cables=====
* 2 x 5 XLRf-XLRm from XTA crossovers to amp channels (5-way on each side)
* 2 x 7 TRS-XLRm to daisy-chain amps (4 for a second set of Frog amps, and 3 for a total of 4 sub amps on each side)
=====NL8 Speakon cables=====
These whirlwind cables are 0.590&quot; thick and carry 8 13GA conductors. [http://www.whirlwindusa.com/audio02.html look for model W13/8 here], or  MULTILINE SPEAKER CABLES [http://www.whirlwindusa.com/spkr01.html here].
* To Frogs - each component (Low, LoMid, HiMid, High) is wired to a different NL8 pair.
** 4 NL8 cables terminating with 4 dual-banana pairs on the amp side.
** 4 NL8 Speakon-Speakon patch cables to daisy-chain 2 frogs per amp-set.
* Subs - each sub is wired on one pair. 4 NL8 pairs will carry signal from 4 amps, and each group of subs will be wired to one of the pairs.
** 2 NL8 cables terminating with 4 dual-banana pairs on the amp side.
** 14 NL8 Speakon-Speakon patch cables to daisy chain 2 subs per amp-set. (we'll need only 6 of these if we don't get the extra 8 subs)
* Current Whirlwind NL 8 Cable [http://www.whirlwindusa.com/ftp/ColorCode/wwcolorcode.pdf wiring codes]:
<div style="margin: 10px; padding-left: 100px; width: 400px;  " >
{| style="background:#333333; color:grey; border:medium double grey;"
|-
!Pin#
!Color
!Pin#
!Color
|-
| 1+
| style="color:black; padding-right:4px;"|Black
| 3+
| style="color:brown; padding-right:4px;"|Brown
|-
| 1-
| style="color:white; padding-right:4px;"|White
| 3-
| style="color:blue; padding-right:4px;"|Blue
|-
| 2+
| style="color:red; padding-right:4px;"|Red
| 4+
| style="color:orange; padding-right:4px;"|Orange
|-
| 2-
| style="color:green; padding-right:4px;"|Green
| 4-
| style="color:yellow; padding-right:4px;"|Yellow
|}
</div>


====TODO====
==D23==
* Equipment testing (90% done)
Sound system at D23 [[Club_House|Club House]]:<BR>
* [[Media:SoundSystem_cabling_diagram_v.1.1.pdf|Signal and power flow plan]] (100% done)
<gallery heights=200px widths=300px mode="packed-hover">
* Equipment repair (90% done)
* Sub cabinet re-wiring - currently there are some subs wired for pair 1 and some for 2 - we need to get them all equally distributed between the four pairs. (100% done for the 8 subs that we have)
* Rex/Dex speaker mounting plan (100% done)
* NL8 speaker cable layout plan (100% done)
</gallery>
* NL8 speaker cable stripping/screwing/soldering party (100% done)
* Rack cooling solution - lead by Lowroad
* Find a PC laptop to run [http://www.xta.uk.com/acore_software_info_frame.htm XTA Audiocore] - the crossover configuration software
* Make/buy a crate for all the cables.
* '''Load out to the container'''


<br />
==D22==
<br />
Sound system used in D22 [[Club_House|Club House]]:<BR>
<br />
(2 working / 2 total) [https://www.pioneerdj.com/en-us/product/player/archive/cdj-2000nxs2/black/overview/ CDJ 2000NXS 2] - after D22 kept at Charlie Funk (PA)<BR>
<br />
(1/1) [https://www.pioneerdj.com/en-us/product/player/archive/cdj-2000nxs/black/overview/ CDJ 2000NXS] - after D22 kept at Charlie Funk (PA)<BR>

(1/1) [https://www.pioneerdj.com/en-us/product/mixer/archive/djm-900nxs/black/overview/ DJM 900NXS] - after D22 kept at Charlie Funk (PA)<BR>
===MACKIE (amplified speakers)===
(1/1) [https://www.ecler.com/images/downloads/data-sheets/Ecler_NUO20_Data_Sheet.pdf Ecler NUO 2.0] (last resort back-up mixer) - after D22 stayed in playa containers<BR>
* [http://www.mackie.com/products/srm450/ Mackie SRM450] (available now: 4/4) (15x15x26 = 3.39 total= 13.56)<br />
(2/2) [https://products.electrovoice.com/na/en/zlx-15bt/ EV ZLX-15BT] - after D22, disappeared, apparently during NYC Container load-out. Next time: LABEL our gear!<BR>
* [http://www.mackie.com/products/srs1500/ Mackie SRS1500] (available now: 3/3) (24x17x24 = 5.67 total= 17.01)<br />
(3/4) [https://www.manualslib.com/manual/293821/Mackie-Sa1521.html Mackie SA1521] - after D22 kept at Tejawe (LA)<BR>
* [http://www.mackie.com/products/sa1521/ Mackie SA1521] (available now: 2/2) (18x17x32 = 5.67 total= 11.34)<br />
(2/3) [https://www.manualslib.com/manual/97213/Mackie-Srs1500.html?page=10 Mackie SRS1500] - after D22 kept at Tejawe (LA)<BR>
[[Image:Disorient_sound.jpg|200px]]<br />

===CREST/EAW===
* [http://www.crestaudio.com/products/browse.cfm/action/detail/item/116225/number/CFA-CA9-AB/cat/319/CA+Series.cfm Crest Audio CA9] (power amps) (available now: 3/3) (23x22x24 = 7)<br />
* [http://www.eaw.com/documents/Loudspeaker_Product_Info/Discontinued_Loudspeakers/MKe_series/MK5194e/MK5194_polar.pdf EAW MK5194] (500W speakers) (available now: 5/5) (20x16x30 = 5.56 total= 27.8)<br />
total cubic feet for systems 2 and 3 = 77<br />

==DJ equipment==
* [http://www.1200s.com/ Technics 1200s] turntables (available now: 2/4)<br />
* [http://www.denondj.com/prodview_item.asp?pid=1 Denon DNS1000] MP3/CD players (available now: 2/2)<br />
* [http://www.pioneerelectronics.com/pna/v3/pg/product/details/0,,2076_310069701_310131180,00.html Pioneer CDJ700s] CD player (available now: 1/1)<br />
* [http://www.pioneerprodj.eu/eur/products/44/107/503/EFX-1000/index.html Pioneer EFX100 DJ Effector] (arrives in NYCContainer?) Lessons in use from Cdjilnik <br />


<gallery heights=200 widths=300 mode="packed-hover">
D22CDJPlayaRepairs.jpg|Playa repairs
DisorientDJMixerBackUpEclerNUO2.0.jpg|Back-up mixer of last resort
D22DisorientLASound.jpg|Disorient LA Sound
</gallery>
<!--
<!--
* [http://www.eclerdjdivision.com/productCont.php?ap=2&sub=1&id=1 ECLER NUO 2] DJ mixer (available now: 0/1)<br />-->
[[File:D22CDJPlayaRepairs.jpg|400px]] [[File:DisorientDJMixerBackUpEclerNUO2.0.jpg|230px]] [[File:D22DisorientLASound.jpg|300px]]
[[Image:MiniD.jpg|thumb|right|100px|Mini D]]
-->
'''Mini-D'''<br />
* [http://www.skbcases.com/music/products/proddetail.php?f=&id=176&o=&offset=1&c=102&s=78 An SKB "DJ shuttle" ] packed with: <br />
* [http://www.denondj.com/prodview_item.asp?pid=57 Denon DN-X500] rack-mounted mixer<br />
* [http://www.jingle.org/dn-1800f.htm Denon DN-1800F] rack-mounted double CD player with controller<br />
<br />

==Wishlist==
* [http://www.pioneerprodj.com/gear_cdj1000mk3.html Pioneer CDJ1000] ([http://www.samash.com/catalog/showitem.asp?itemid=54547 buy]) CD players with single carry cases ([http://www.samash.com/catalog/showitem.asp?itemid=22053 buy]) (4)<BR>
* [http://www.allen-heath.com/UK/xone62.asp Allen and Heath Xone 62] ([http://www.samash.com/catalog/showitem.asp?itemid=40419 buy]) DJ mixer with case ([http://www.samash.com/catalog/showitem.asp?itemid=43956 buy]) (1)
* [http://www.crownaudio.com/amp_htm/itech.htm Crown iTech amplifiers]
** iTech 8000 ([http://www.samash.com/catalog/showitem.asp?ItemPos=2&TempID=3&STRID=164016&Method=2&CategoryID=0&BrandID=0&PriceRangeID=0&PageNum=0&DepartmentID=0&pagesize=10&SortMethod=2&SearchPhrase=itech&Contains=%2Aitech%2A&Search_Type=SEARCH&GroupCode= buy])(4)
** iTech 6000 ([http://www.samash.com/catalog/showitem.asp?ItemPos=1&TempID=2&STRID=164016&Method=2&CategoryID=0&BrandID=0&PriceRangeID=0&PageNum=0&DepartmentID=0&pagesize=10&SortMethod=2&SearchPhrase=itech&Contains=%2Aitech%2A&Search_Type=SEARCH&GroupCode= buy])(4)
** iTech 4000 ([http://www.samash.com/catalog/showitem.asp?ItemPos=0&TempID=1&STRID=164016&Method=2&CategoryID=0&BrandID=0&PriceRangeID=0&PageNum=0&DepartmentID=0&pagesize=10&SortMethod=2&SearchPhrase=itech&Contains=%2Aitech%2A&Search_Type=SEARCH&GroupCode= buy])(2)

==Cable inventory==
(Oct 13 2006)<br />
<br />
{| width="468" border="1" cellspacing="1" cellpadding="1"
| XLR-XLR<br />
| long - 10<br />
med - 13<br />
short - 9<br />
|-
| Speakon [http://www.neutrik.com/content/products/detail.aspx?id=210_308361&catId=CatMSDE_audio NL4FC] - dual banana<br />
| 1<br />
|-
| Raw speaker cable
| 1 roll
|-
| XLR Y cable 1f->2m<br />
| 2<br />
|-
| 1/4"m-XLRf<br />
| 2+1 short<br />
|-
| 1/4"m-XLRm
| 1<br />
|-
| 1/4" TRS m - XLR m dual<br />
| 1<br />
|-
| 1/4"m - 1/4"m<br />
| dual - 2 (in boxes)<br />
single - 5<br />
|-
| valign="top" | RCAm-RCAm<br />
| valign="top" | dual - 6<br />
single - 3<br />
|-
| valign="top" | 1/4"m - RCAm dual<br />
| valign="top" | 1<br />
|-
| valign="top" | RCAm - XLRm<br />
| valign="top" | 1<br />
|-
| valign="top" | RCAm - XLRf
| valign="top" | 2<br />
|-
| valign="top" | Mini stereo - dual RCAm<br />
| valign="top" | 3<br />
|-
| valign="top" | Mini mono - single<br />
| valign="top" | 1<br />
|-
| valign="top" | MIDI<br />
| valign="top" | 3<br />
|-
| valign="top" | VGA - BNC components
| valign="top" | 1<br />
|-
| valign="top" | BNC-BNC<br />
| valign="top" | 1<br />
|}
<br />
<br />
<u>Adapters</u><nowiki>:</nowiki><br />
<br />
{| width="467" border="1" cellspacing="1" cellpadding="1"
| Speakon f - dual banan adapter<br />
| 1<br />
|-
| valign="top" | 1/4" stereo splitter m-2f<br />
| valign="top" | 1<br />
|-
| valign="top" | XLRm-m gender changer<br />
| valign="top" | 5<br />
|-
| valign="top" | XLRf -1/4"m<br />
| valign="top" | 1<br />
|-
| valign="top" | RCA f-f gender changer<br />
| valign="top" | 2
|}
<br />
<br />
* [http://www.whirlwindusa.com/split.html Whirlwind Split 6] (available now: 2/2) (line level parallel splitters)<br />
<br />
<u>Power cables</u><nowiki>:</nowiki><br />
* 20 standard grounded + 1 not grounded<br />
* Extension + 4-way splitter<br />
* Extension<br />
* Y cable<br />
<br />
<u>Mics</u><nowiki>:</nowiki><br />
* [http://www.akg-acoustics.com/products/powerslave,mynodeid,7,id,482,pid,482,_language,EN.html AKG D800 ]- 1<br />
* Shure [http://www.shure.com/ProAudio/Products/WiredMicrophones/us_pro_SM58-CN_content SM58] - 1<br />
* [http://www.shure.com/ProAudio/Products/WiredMicrophones/us_pro_Beta58A_content Beta58] - 1<br />
<br />


[[Image:TheBass_Compressor2005.jpg|300px]]<BR>
==Sound equipment we used to own but have lost along the way==
The Bass with some bass at Compressor 2005.
[http://tinyurl.com/disorientsound http://tinyurl.com/disorientsound]<BR>
<gallery heights=200px widths=300px mode="packed-hover">
</gallery>

Latest revision as of 21:25, 12 July 2024

D24

20240710 Operation Deep Housecall

James Patrick, ItsJohnFoster, Mandy, Kmak, So On It and Brinksman.
Discussion: https://discord.com/channels/932718953892040734/1114552806771277915/1260304384043253822
Goals:
1. Gather, clean and test Yoga sound system.
2. Store system in Reno container to be shipped to playa.

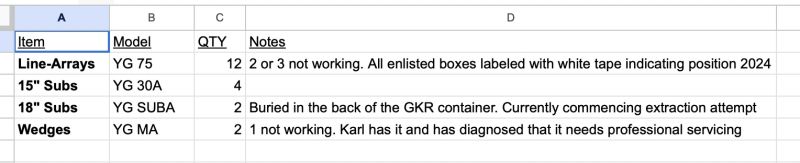

Yoga sound system inventory and configurations diagrams:
https://drive.google.com/drive/folders/1PMgM3mOXFagq4drG_HepZ5uflG_RMx6u?usp=sharing

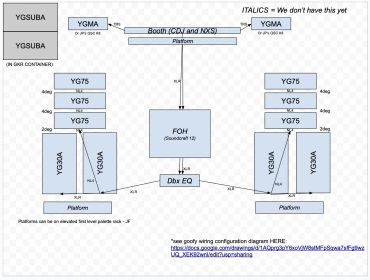

20240712.YogaSoundSystemBuildDiagram.jpg 20240712.YogaSoundSystemWiringConfig.jpg 20240712.YogaSoundSystemInventory.1.jpg

YG 75
YG 30AD
YG SUBA
YG 12MA

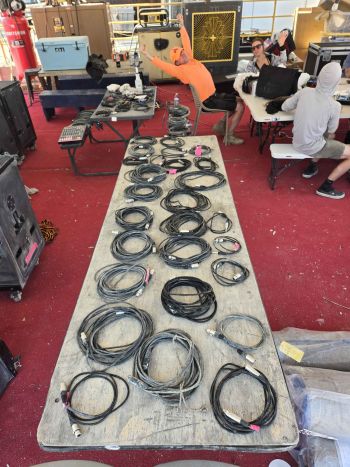

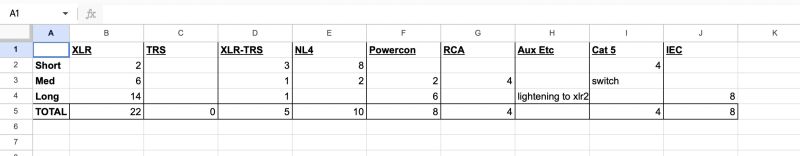

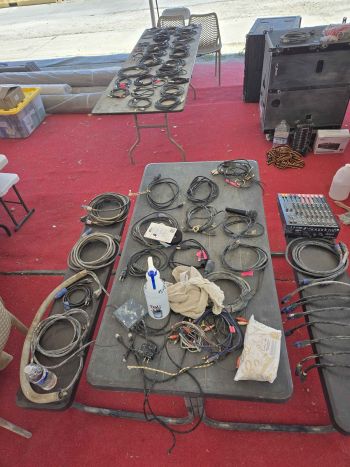

20240711.YogaSoundSystemCableInventory.1.jpg 20240711.YogaSoundSystemCableInventory.2.jpg 20240711.YogaSoundSystemCableInventory.3.jpg


D23

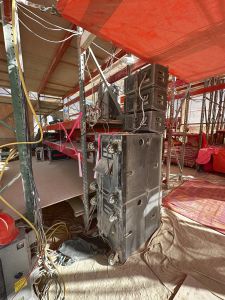

Sound system at D23 Club House:

  • D23Sound.1.jpg
  • D23Sound.2.jpg
  • D23Sound.3.jpg

D22

Sound system used in D22 Club House:
(2 working / 2 total) CDJ 2000NXS 2 - after D22 kept at Charlie Funk (PA)
(1/1) CDJ 2000NXS - after D22 kept at Charlie Funk (PA)
(1/1) DJM 900NXS - after D22 kept at Charlie Funk (PA)
(1/1) Ecler NUO 2.0 (last resort back-up mixer) - after D22 stayed in playa containers
(2/2) EV ZLX-15BT - after D22, disappeared, apparently during NYC Container load-out. Next time: LABEL our gear!
(3/4) Mackie SA1521 - after D22 kept at Tejawe (LA)
(2/3) Mackie SRS1500 - after D22 kept at Tejawe (LA)

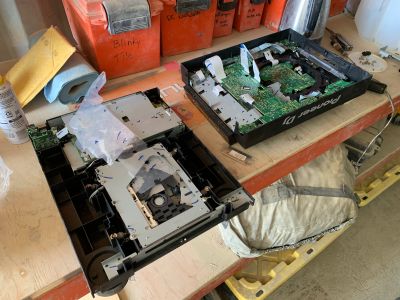

  • Playa repairs

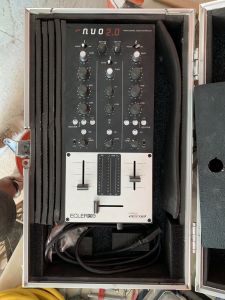

  • Back-up mixer of last resort

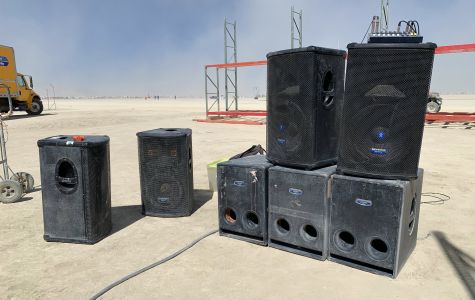

  • Disorient LA Sound

Sound equipment we used to own but have lost along the way

http://tinyurl.com/disorientsound

  • D16DustyDecks03.jpg
  • D16DustyDecks02.jpg
  • DustyDecks01.jpg
