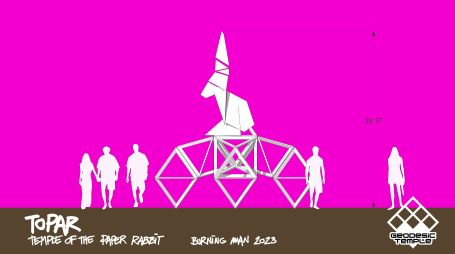

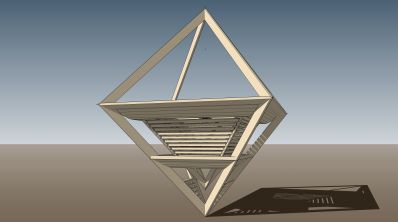

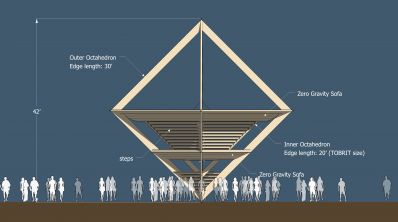

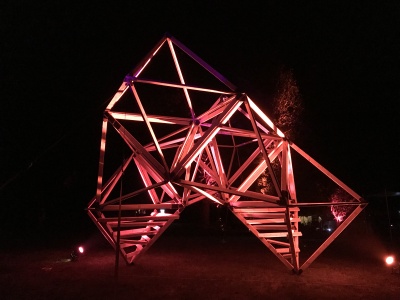

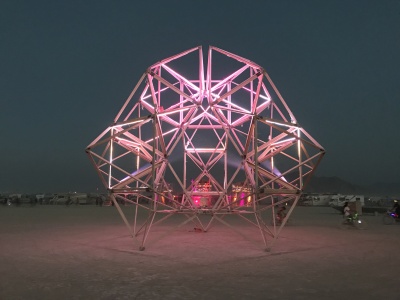

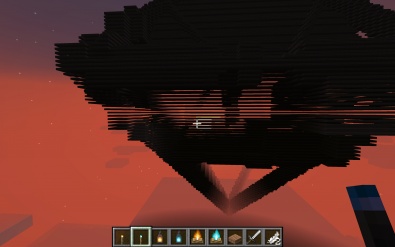

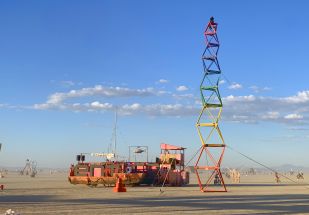

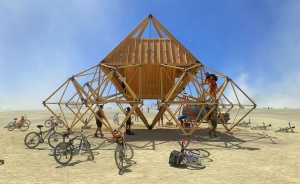

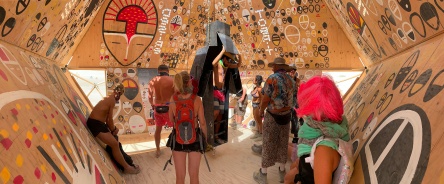

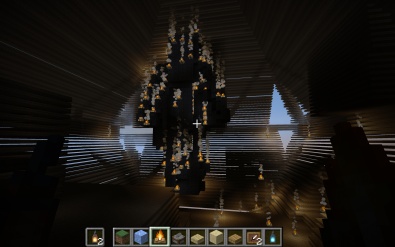

Temple of Brad Pitt (TOBRIT) (Burning Man 2019)

The Temple of Brad Pitt channels the famous Hollywood actor. It captures Brad Pitt’s aura, extracts the essence of his being through data gathering and redisplays it as a performative sculpture at Burning Man 2019 enabling participants who enter a special apparatus to briefly experience what it is to be him. read more

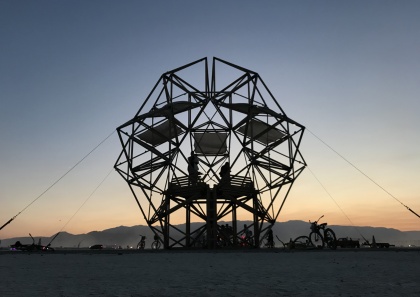

Temple of Incompletion (TOI) (Burning Man 2018)

The Temple of Incompletion is an ode to the unsolved problems and the unanswered questions, it is a reminder that it is important for some things to remain unfinished, incomplete, open. read more

Temple of Incompletion BM2018.1.jpg Temple of Incompletion BM2018.2 photo by Jane Metcalfe.jpg


The Eighth (Disorient Country Club 2018)

GeoTemCC18 The Eighth.1.jpg GeoTemCC18 The Eighth.2.jpg GeoTemCC18 The Eighth.3.jpg


Temple of Forbidden Symmetry (TFS) (Burning Man 2017)

The Temple of Forbidden Symmetry is an ode to the unsolved problems and the unanswered questions, it is a reminder that it is important for some things to remain unfinished, imperfect, open. read more

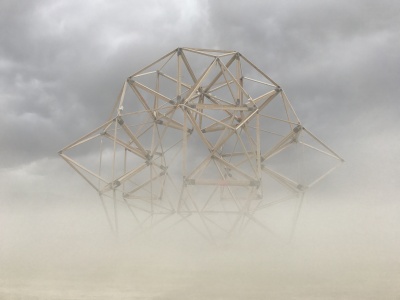

IMG 9627.JPG IMG 9749.JPG


GeoTem Art Car

GeoTemArtCar2017.1.jpg GeoTemArtCar2017.3.jpg GeoTemArtCar2017.4.jpg


The Seventh aka ETH (Country Club 2017)

TEMPLARS:
Director, Producer, Design, 3D model: The Eye
Assembly: Lowroad, Slavik K., The Eye
Lighting: Vadim
Burn: Lowroad, Jason G., Volume

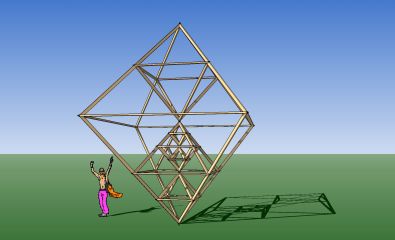

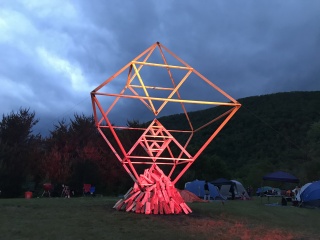

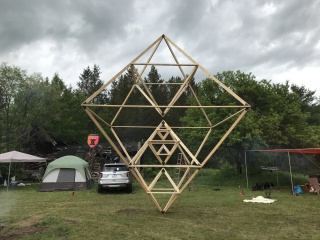

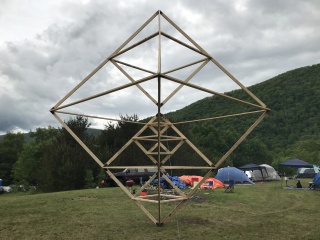

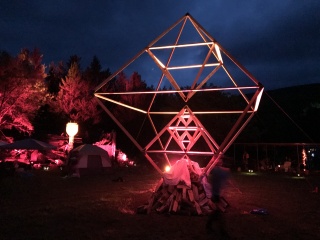

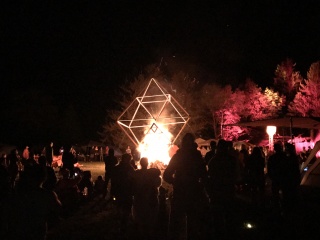

GeoTemTheSeventhCC2017.1.jpg GeoTemTheSeventhCC2017.5.jpg GeoTemTheSeventhCC2017.3.jpg GeoTemTheSeventhCC2017.4.jpg GeoTemTheSeventhCC2017.2.jpg GeoTem TheSeventh CC2017.4.jpg


Crypto (Bedouin Tech 2017)

TEMPLARS:
Director, Design, 3D model: The Eye
Producers: The Eye, Firas
Connector advisors: Simas B., Lowroad
LED / Programming: Warren, Jacob J., Paul
Wood: Carlos, Ivan, Zander, Orwa, Azmi, Omar, Ameed, Eli
Shade: Zarina
Logistics, Coordination, Fundraising: Firas, Warren

GeoTem Crypto BT17 Dubai.1.jpg GeoTem Crypto BT17 Dubai.2.jpg GeoTem Crypto BT17 Dubai.3.jpg
GeodesicTempleBedouinTechDubai20170125.5.jpg GeodesicTempleBedouinTechDubai20170125.3.1.jpg GeodesicTempleBedouinTechDubai20170125.elev1.jpg GeodesicTempleBedouinTechDubai20170125.plan.jpg

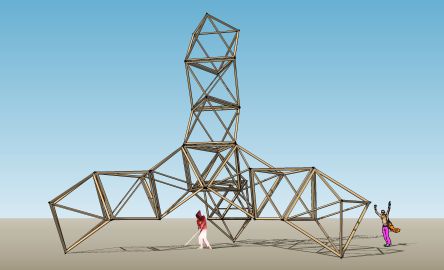

Tetrax (Burning Man 2016)

COMPONENTS:
(13) octahedra

NOTES:
- Uses wood and connectors from GAX.
- Assembly/disassembly required DPW crane for 4 hours
- Disassembly required DPW crane for 2 hours

TEMPLARS:
Director: The Eye
Producers: The Eye, Trammel H.
Assembly Lead: Randy P., Jacob Markus H.

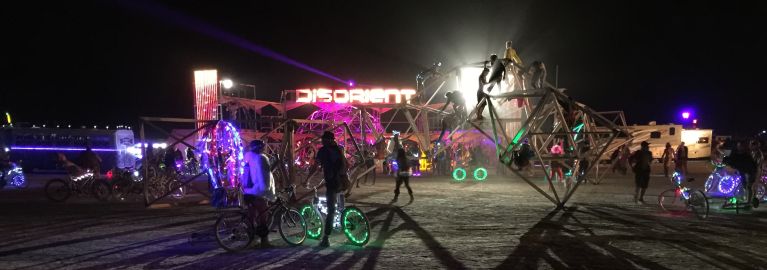

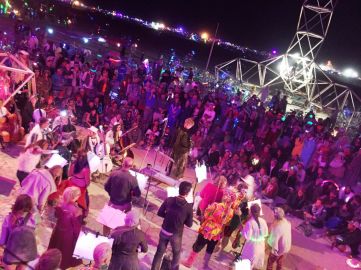

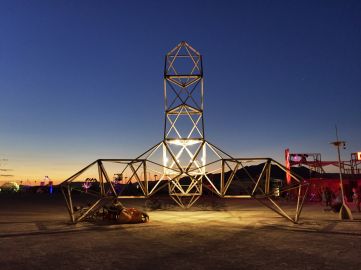

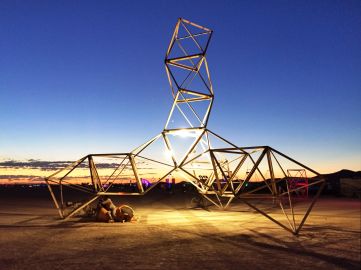

GeoTemTetraxBM2016.jpg GeoTemTetraxBM2017.1.jpg

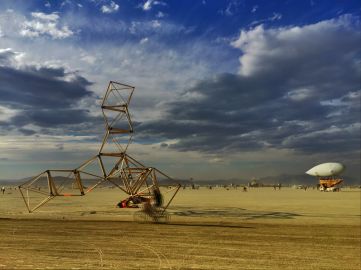

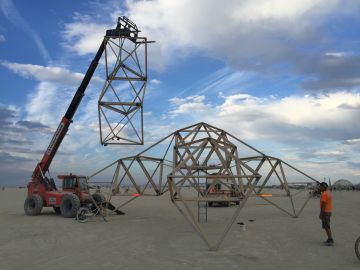

TetraSymmetry20160520.jpg GeoTemTetraxBM2017.2.jpg GeoTemTetraxBM2017.3.jpg GeoTemTetraxBM2017.4.jpg


The Sixth (Country Club 2016)

Dimensions: 16' wide x 24' high x 16' deep

NOTES:
- First time using OHs of different sizes together in a GeoTem.

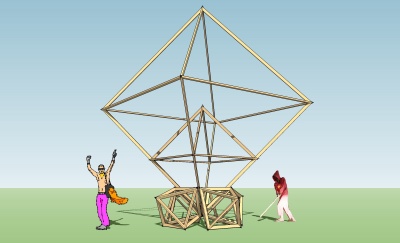

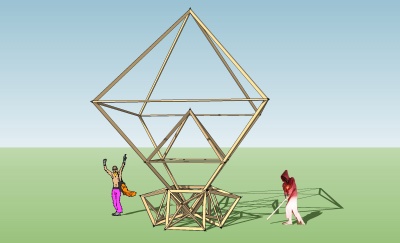

GeoTem TheSixth CC2016.1.jpg GeoTem TheSixth CC2016.2.jpg


Sarcophagus (Bedouin Tech 2016)

3D model: File:GeodesicTempleBedouinTechDubai2016.skp
Dimensions: 1100cm wide x 680cm high x 1070cm deep

COMPONENTS (2 OH contingency included):
(8) octahedra
(96) 400cm long 2x4 studs (sourced in Dubai)
(96) Simas connectors (made in Dubai)
(36) Lowroad connectors (made in Dubai)
(888) 0.25" x 2.5" bolt/washer/nut combo
(96) 380cm white LED strips with power supply and controller

NOTES:
- Sarcophagus is the first GeoTem to use 400cm long wooden studs (previous GeoTems used 8ft. long studs). This means that each OH will require ladders to be assembled. We will need two 300cm ladders.
- Final assembly will require work done at 680cm high so we might need a small cherrypicker for construction and break-down

TEMPLARS:
Director, Design, 3D model: The Eye
Producers: The Eye, Firas
Connector advisors: Simas B., Lowroad
LED / Programming: Warren, Ivan, Justin
Wood: Guillaume, Freeman, Wees, D'Arcy, Ramzi
Paint: Talal, Rawi, Salina
Logistics, Coordination, Fundraising: Firas, Warren

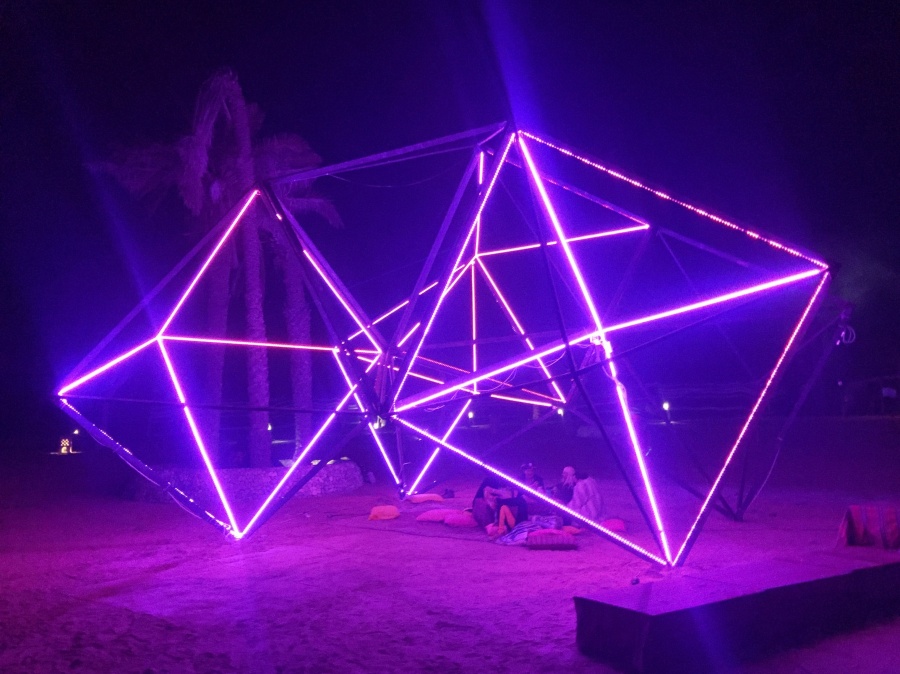

GeoTemSarcophagusDubai2016.9.jpg GeoTemSarcophagusDubai2016.2.jpg GeoTemSarcophagusDubai2016.3.jpg GeoTemSarcophagusDubai2016.4.jpg GeoTemSarcophagusDubai2016.6.jpg GeoTemSarcophagusDubai2016.7.jpg GeoTemSarcophagusDubai2016.8.jpg GeoTemSarcophagusDubai2016.1.jpg GeodesicTempleBedouinTechDubai2016.1.jpg GeodesicTempleBedouinTechDubai2016.2.jpg GeodesicTempleBedouinTechDubai2016.3.jpg GeodesicTempleBedouinTechDubai2016.4.jpg


Asterix (Burning Man 2015)

3D model: File:GeoTemAsterix2015.skp

COMPONENTS:
(9) octahedra

NOTES:
Uses wood and connectors from GAX.

TEMPLARS:
Director: The Eye
Producers: The Eye, Justin D.
Electronics design: Max Henstell, Matt Mets
Assembly: Lowroad, Freeman, Jasmine Y, Jared Klett, Brian O'Clair

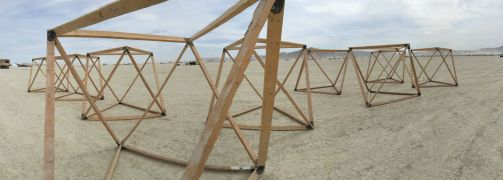

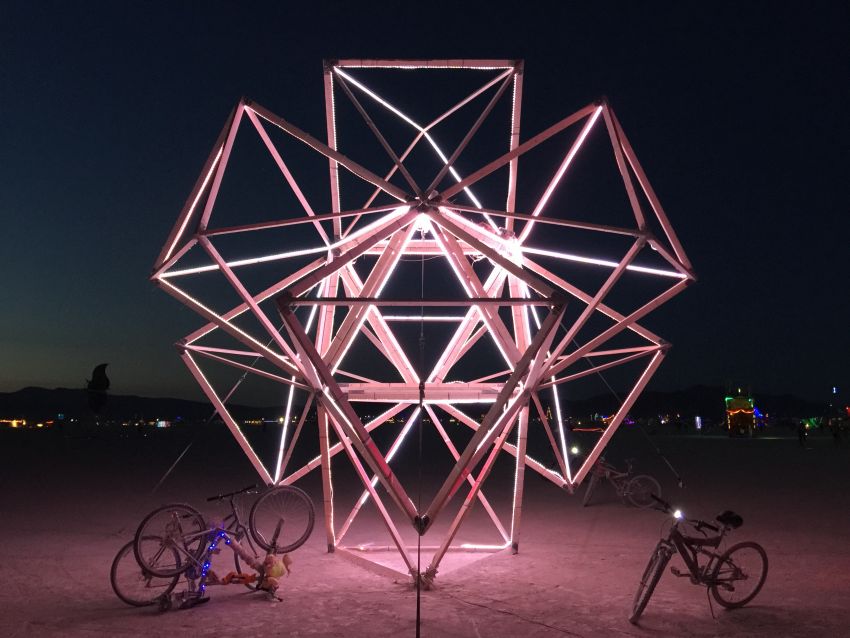

GeoTemAsterixBM2015.2.jpg GeoTemAsterixBM2015.3.jpg GeoTemAsterixBM2015.4.jpg GeoTemAsterixBM2015.5.jpg GeoTemAsterixBM2015.6.jpg GeoTemAsterixBM2015.7.jpg GeoTemAsterixBM2015.9.jpg GeoTemAsterixBM2015.10.jpg GeoTem2015-03.4.jpg GeoTem2015-04.4.jpg
Error creating thumbnail: File with dimensions greater than 15 MP


The Fifth (Country Club 2015)

by The Eye and Ninja
3D model: File:GeoTemCC2015.skp

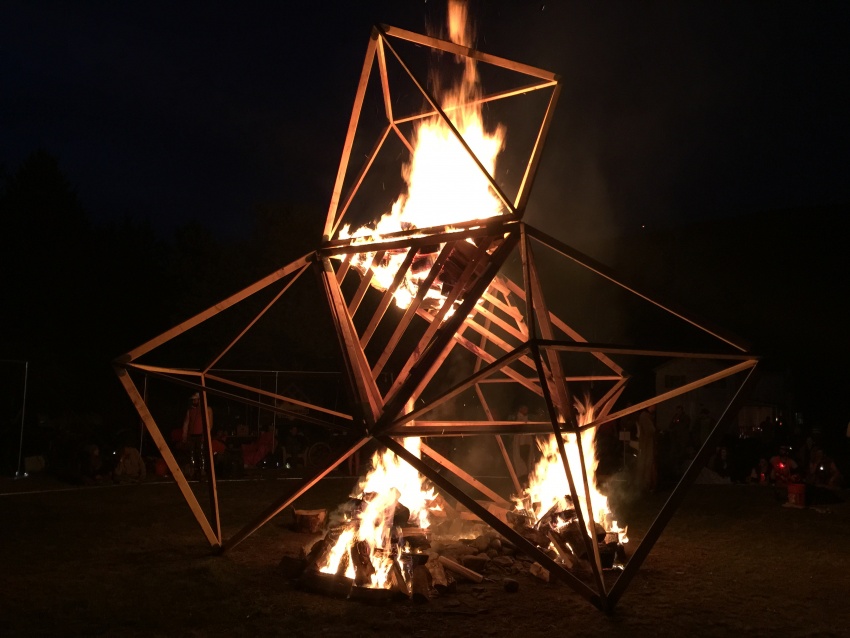

GeoTemCC2015.1.jpg GeoTemCC2015.2.jpg GeoTem2015-CC03.1.jpg GeoTem2015-CC03.1.1.jpg GeoTem2015-02-1.4.jpg GeoTem2015-02-2.4.jpg

Material and tools:
- 75x 2x4x8' wood studs
- 4x 2x4x10' wood studs
- 64x Simas Connectors
- 25x Lowroad Connectors
- 9x Triangular Tarps. provide shade during the day. To be removed before burn.
- 100x 6" ball bungees
- 2x Screw gun with bits
- Ryobi charger
- miter saw
- big box 1 5/8" screws
- big box 2 1/2" (better) OR 2" screws
- small washers for 1 5/8" screws
- 2x white folding table

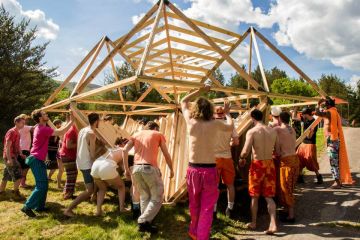

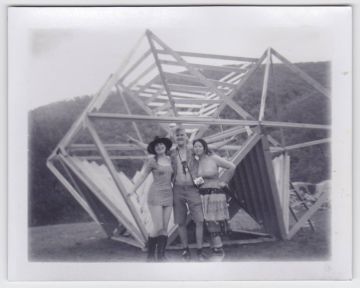

The Fourth (Country Club 2014)

GeoTem at Country Club
by the Soviet Block

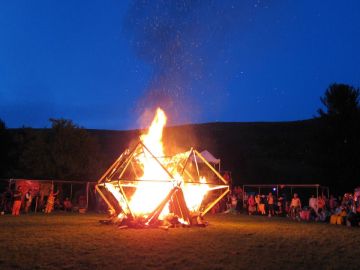

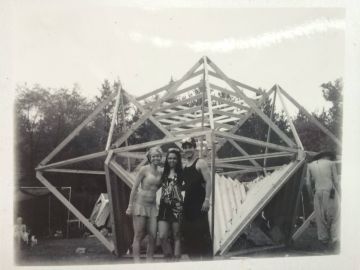

GeoTem2014CC02.jpg GeoTem2014CCburn.jpg


The Third (Country Club 2013)

by Lowroad and The Eye
Named by Dimitri
CC2013Effigy s.jpg CC2013 TheThird01.jpg CC2013 TheThird02.jpg


GeoTem08

GeoTem on the Dex

GeoTem07 (2011)

GeoTem06 on its side
GeoTem07elev01.jpg GeoTem07elev02.jpg GeoTem07elev03.jpg GeoTem07plan.jpg
Height: 61' Length: 116' Width: 82'. 24 studs x ?? octahedra = ?? 2x4x8' studs.

GeoTem06 (2011)

Iteration of GeoTem04 and GeoTem05
GeoTem06pers01.jpg GeoTem06pers02.jpg GeoTem06pers07.jpg GeoTem06pers06.jpg
GeoTem06isometry01.jpg GeoTem06isometry02.jpg GeoTem06pers03.jpg GeoTem06plan.jpg
Height: 64' Length: 82' Width: 82'. 24 studs x 144 octahedra = 1728 2x4x8' studs.

GeoTem05 (2011)

Iteration of GeoTem04
GeoTem05pers01.jpg GeoTem05pers02.jpg GeoTem05pers05.jpg GeoTem05plan.jpg
Height: 52' Length: 57' Width: 57'. 24 studs x 55 octahedra = 660 2x4x8' studs.

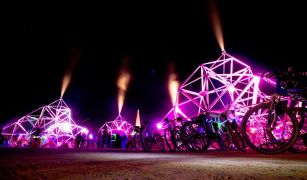

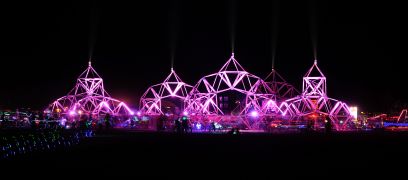

GAX (GeoTem04 Arena Hexa) (Burning Man 2011)

Burning Man Proposal
360 photo of GAX
Setup and breakdown (unedited time-lapse by Matt P.)

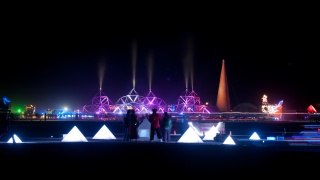

GAX 05.jpg GeodesicTempleBM2011.jpg GAX 01.jpg GAX 02.jpg
Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP

Photos by James Addison

Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP

Height: 32' Length: 110' Width: 95'. 12 studs x 65 octahedra = 780 2x4x8' studs.
3D model of GAX: File:GAX.skp

GeoTem04 Arena Square (2011)

Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP

Height: 32' Length: 83' Width: 83'. 12 studs x 52 octahedra = 624 2x4x8' studs.

GeoTem04a (2011)

GeoTem04apers01.jpg GeoTem04apers02.jpg GeoTem04aisom01.jpg GeoTem04aplan.jpg
Height: 32' Length: 33' Width: 33'. 24 studs x 21 octahedra = 480 2x4x8' studs.

GeoTem04 (2011)

GeoTem04pers01.jpg GeoTem04pers03.jpg GeoTem04pers02.jpg GeoTem04pers04.jpg GeoTem04plan.jpg
Height: 32' Length: 33' Width: 33' Weight: ~2000 Lbs (including metal connectors and hardware). 12 studs x 13 octahedra = 156 2x4x8' studs.
Line drawing 3D model of GeoTem04: File:GeoTem04 line.skp

Figment NYC 2011

Time-lapse
GeoTem04 Figment2011 01.jpg GeoTem04 Figment2011 02.jpg GeoTem04 Figment2011 03.jpg
GeoTem04 Figment2011 04.jpg GeoTem04 Figment2011 05.jpg GeoTem04 Figment2011 06.jpg

Playa Del Fuego Spring 2011 Odessa, DE

GeoTem04 PDF Spring2011 02.jpg GeoTem04 PDF Spring2011 03.jpg GeoTem04 PDF Spring2011 04.jpg
GeoTem04 PDF Spring2011 05.jpg GeoTem04 PDF Spring2011 06.jpg GeoTem04 PDF Spring2011 07.jpg

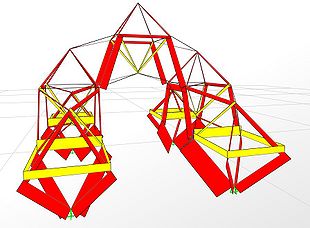

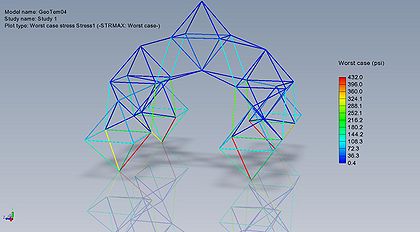

Dead load analysis

GeoTem04 Dead Load 01.jpg GeoTem04 Dead Load 02.jpg GeoTem04-Study 1-Results-Stress1.analysis.jpg

Dead load+Wind analysis

GeoTem04-Failure-Diag01.png GeoTem04-Failure-Diag02.png GeoTem04-Failure-Diag03.png
GeoTem04 Dead+Wind 01.jpg GeoTem04 Dead+Wind 02.jpg

Assembly sequence

1. Connect 5 OH to create big C #1
2. Connect 5 OH to create big C #2
3. Add 1 OH to big C #1 to create Arch #1
4. Add 2 OH to big C #2 to create Arch #2
5. Raise Arch # 1 and #2 and connect them together. Use box truck as elevated platform.

Error creating thumbnail: File with dimensions greater than 15 MP
GeoTem04 PDF Spring2011 01.jpg

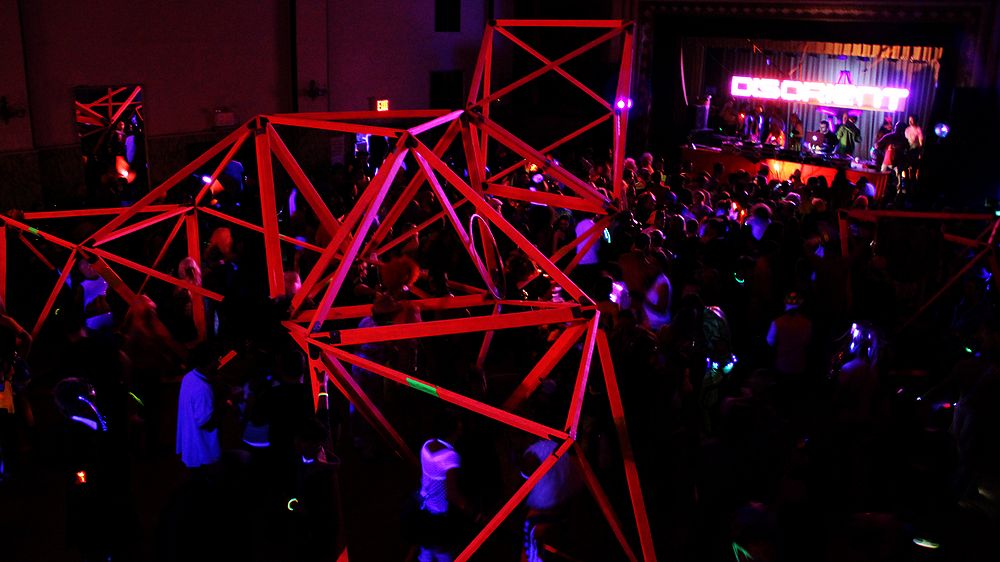

GeoTemAlpha (Disorient presents: GLAMTECH)

Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP
Error creating thumbnail: File with dimensions greater than 15 MP

Error creating thumbnail: File with dimensions greater than 15 MP

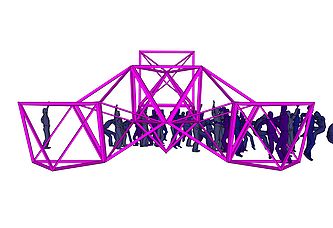

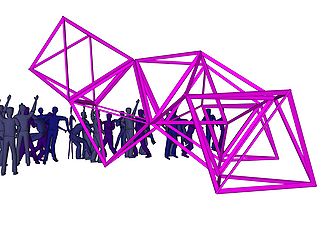

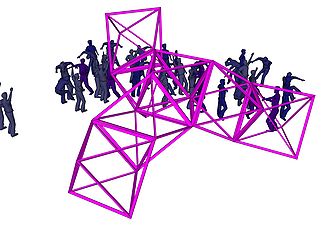

GeoTemAlpha is the first Geodesic Temple to be built. It is a proof of concept made of seven octahedra that form approximately half of GeoTem04. It uses the Lowroad Single Stud Cord design. 2x4 studs are assembled into octahedra using the Simas Connector version 1. It is painted fluorescent pink. Produced by Preston and Jay.
Height: 15' Length: 27' Width: 30'. 12 studs x 7 octahedra = 84 2x4x8' studs.

GeoTem03

GeoTem03pers01.jpg GeoTem03pers02.jpg GeoTem03pers03.jpg GeoTem03plan.jpg
Height: 36 feet. 24 studs x 57 octahedra = 1368 2x4x8' studs.

GeoTem 01, 02

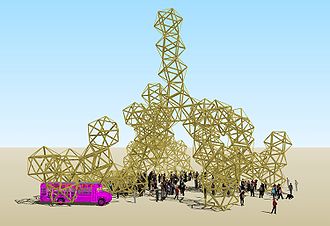

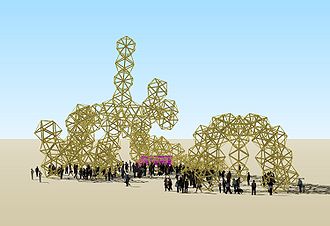

Geodesic temple 2011 03.jpg Geodesic temple 2011 04.jpg <videoflash type="youtube">XbSmkNHScLg|330|228</videoflash>

Height: 91 feet. All icosahedra are the same size.

3D files

GeoTem03, 04, 05, 06: Media:GeoTemOcta01.skp‎
GeoTem01, 02: Media:GeoTemIco.skp‎

Notes

- Camp frontage and Dex transformation uses same polyhedron as Geodesic Temple.

References:
http://www.esf.edu/efb/turner/termitePages/termiteStruct.html
La Fievre d'Urbicande
From Victoria's inspirations and JoeChe on FB
From vic 01.jpeg From vic 02.jpeg Joeche diamond.jpeg
