Dex is short for Disorient Express.
The Disorient Express is Disorient's fleet of mutant vehicles.
The Dex is the first module of the Disorient Express.
76098 10150328519380191 735435190 16120228 2972732 n.jpg
Dex2009 bm.jpg Dex inside bm2007.jpg
Orange dex.jpg IMG 0412.JPG Dex cuddlefish 2009.jpg

General Dex Information

Name: Disorient Dex
Purchased by Disorient in July 2005
Make: International Harvester
Model: S-Series 3800
Year: 1985
VIN:
Previous Nevada license number: 979UTJ (stopped being street legal in 2011)
Fuel type: Diesel, Biodiesel
Dimensions: 24' long, 7' wide, 10' high
Initial Dex transformation in the back of the building on Hillary Street in Brooklyn where we had the first Compressor (Summer 2005)
3D model of the Dex (Google SketchUp format): Media:Dex.skp
Dex on Facebook

Driving tips:
1. Start engine.
2. The annoying sound is normal. Wait a couple of minutes for pressure to build in the air break tanks. The annoying sound will stop when there is enough pressure and it is ok to drive.
3. Push the big black button towards located around center of the dashboard ALL THE WAY to be in driving mode. If you don't push all the way you will hear an air sound which is normal but you need to push all the way until the button snaps into position to be able to drive. You are not supposed to have your foot on the brake pedal when you do that.
4. Put in 1st gear, or reverse depending on the situation. The gear display is off by 1 so get used to it before getting on the road.
5. When you're done driving, put the gear in Neutral and pull the big black button all the way back towards you. This is the parking brake.
6. When you're done driving for the day, you must empty the air tank. To do this you gently push on the big black button until you hear no more air coming out. This will take a couple of minutes.

Practice 1-5 a couple of times before getting on the road. It is not difficult but it does require some adjustment from driving a vehicle without air brakes.


Parts list:
Fuel Filters (Need Both)
Baldwin BF1212
Baldwin BF786

Hydraulic Filter
Baldwin BT839

Air Filter
Napa Gold 6204

Oil Filter
Fram PH3306A or Fram C175E
15-40WT

Diesel Fuel

DexDome (2014)

Proposal by Lowroad and The Eye

Dome

- Disorient Dome #2 is assembled on the ground then lifted with crane and secured onto Dex with a series (probably around 15) of metal poles. Possible metal poles could be scaffolding poles with rotating head connectors for ease of adjustment. Structural anchor points are identified on Dex for metal pole connection. We might need to subcontract this part to a scaffold company.
- Triangles (equilateral, all same geometry) made of two-way gold mylar are secured with bungee cords inside each dome triangle.

Top Lounge with Disorient Sign

- Circular lounge installed on roofrack. Guests sit on carpeted floor. Lots of pillows. Circular 2ft. tall Disorient Sign installed on outside wall of lounge. ~ 2220 points of light.

Bottom Lounge

- Existing lounge and DJ booth are removed. Openings made on side of Dex that is not yet open. A second smaller circular lounge is fabricated on the first level of Dex.
- Entrance to lounge is through existing bus door.
- Central spiral staircase connects the two lounges.

Music, Lights, Palette

- DJ set-up is a low white table that can be moved around. DJ plays sitting, next to the people in the lounge.
- A dozen white spotlights secured to the bottom outside dome pointing away from dome used as safety lights while driving.
- White and gold. Lounges have white pillows and white carpet. Everything but the gold mylar triangles is painted white.

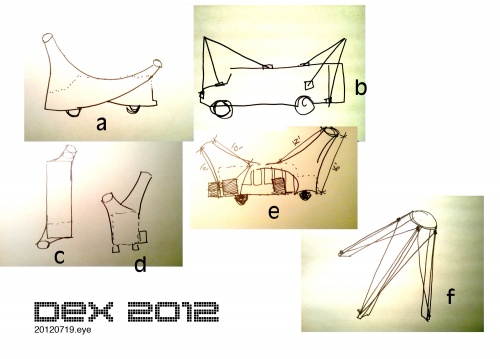

(2012)

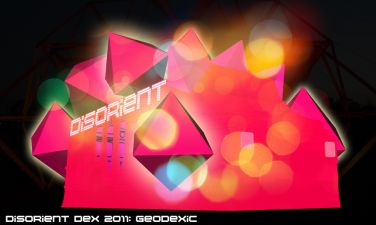

GeoDexic (2011)

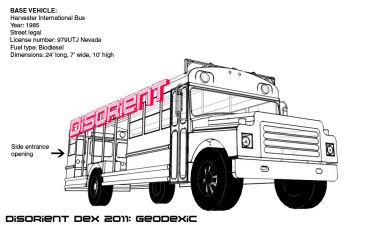

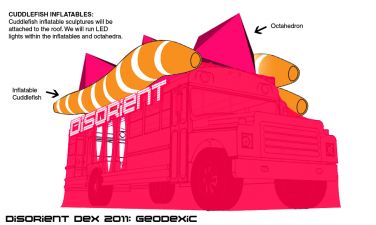

The Dex will be transformed by members of Disorient into a series of geometric shapes composed of glowing octahedra and pyramids which will seemingly float across the playa surface creating a roaming compliment to the camp's Geodesic Temple installation. The Dex will interplay with the Geodesic Temple to serve as a satellite piece branching off to various parts of the playa while remaining connected to our intent -- to create sacred spaces and community. In it's GeoDexic form the Dex will provide a medium for members of the Burning Man community to momentarily intermingle through travel while serving as an integral part of the Geodesic Temple installation by providing sound and a dancefloor. The Dex will be transformed into geometric shapes intertwining to create ever-changing visual art and sacred spaces with an interplay between shapes, people, space and time.

MATERIALS
We will use 2x4 struts, custom built metal connectors, fabric, LED, inflatable sculptures, bolts, and rope to construct the Dex this year.

BUILD PROCESS

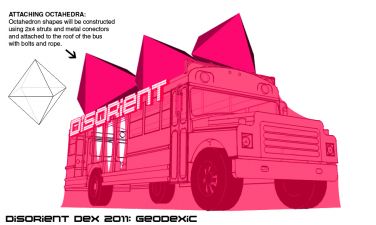

We will connect 2x4 struts with custom welded metal connectors to form several octahedra which will be connected to the the roof of the bus with bolts and further secured with rope. We will drape the bus with fabric which will hide the base vehicle. Octahedra and last year's Cuddlefish inflatable sculpture will be attached to the roof and right side of the bus, and the 1,000 Watt Smile piece will be attached to the front of the bus as it was last year.

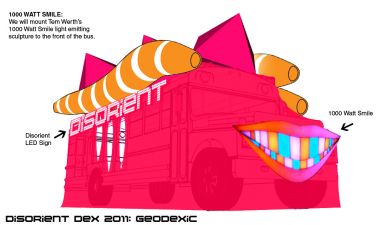

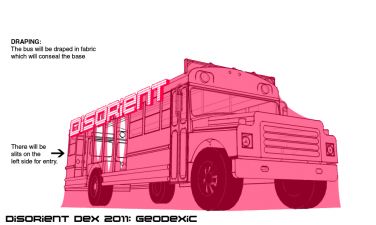

Base.jpgDraping.jpg Octodex.jpgCuddlehedradex.jpg Dexfinal.jpg

DexNightTime.jpg"

Version1: GeoDexic.jpg

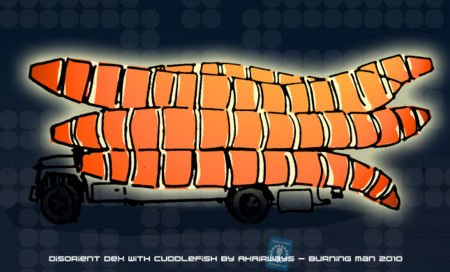

Cuddlefish (2010)

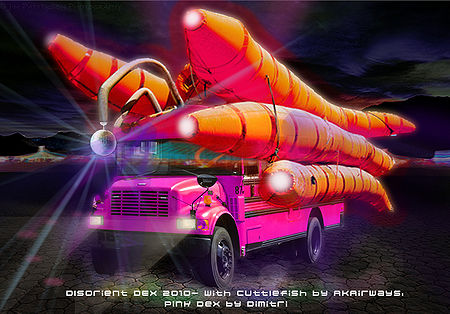

Dimitri and crew painted the Dex fluorescent pink before driving it to the Playa.

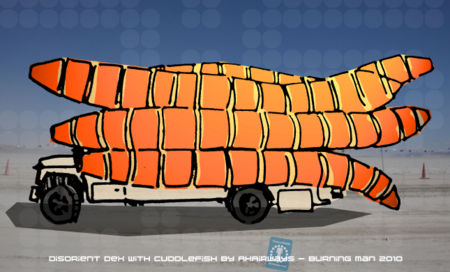

CuddleFish Dex day.jpgCuddleFish Dex night.jpg

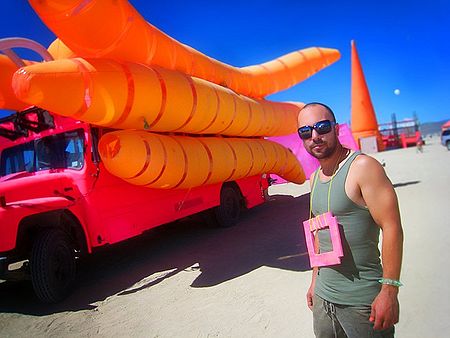

Dex2010.jpgDex n D 2010.jpg

Cuddlefish (2009)

Cuddlefish

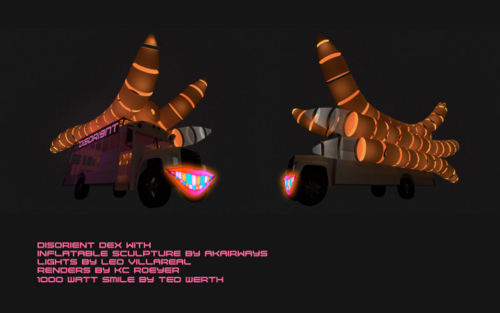

In 2009 the Dex becomes a glam Cuddlefish-inspired creature with inflatable horns and tails by AKAirways, 1000 Watts smile by Tejawe and lights by Leo Villareal. The speakers are hung outside starboard on a new L-shaped shelf fabricated and installed by Simas and crew. 3D model by KC.


<videoflash type="youtube">vbsECZdMG-c|420|314</videoflash> Dexnight smile2.jpg

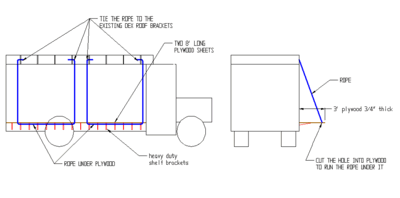

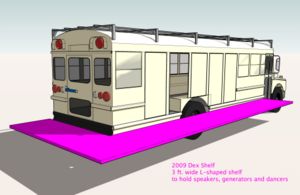

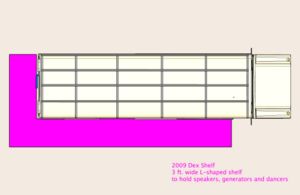

New starboard shelf

New 2009 Dex shelf for speakers
Dex shelf2009 top.jpg Dex shelf2009 pers1.jpg Shelf Sketch.gif

Shelf will be supported with heavy duty shelf brackets: http://woodworker.com/24-hd-shelf-standard-mssu-818-228.asp

Pioneer Wagon (2008)

The DV8 DeX will be a covered pioneer wagon for the American Dream theme.
3002844179_1a4cfcdfc0.jpg 3003682686_93a906d2df.jpg

Ideas

- Arcs formed from 1-1/2 In.(1 7/8" OD) Polyethylene Pipe (can be bend without any heating) mounted with u-bolts to DEX side posts.
- ability to use roof covering as daytime shade similar to an RV awning
- lighting truss mounted on the fascia above the lounge cut-outs. It can be ratchet-strapped or chained to the side of the roof rack where we normally mount the Small Sign
- some kind of wagon wheel representations
- not trailering a generator; mounting one on the front or rear of the DeX and perhaps another one on the roof
- perhaps creating simple barriers around the roof, with foam padding, covered by stapled cloth to create a chillspace and increase the people capacity

Images and Links

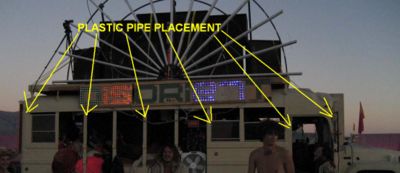

1-1/2 In. x 100 Ft. Polyethylene Pipe ($63.29/EA) will need 200'. U-bolt (http://www.mcmaster.com item #3043T81 or bigger depends on side post dimensions

3 arcs will be attached with u-bolts. For 2 in the front and one for the rear Simas will make a simple bolt on bracket.

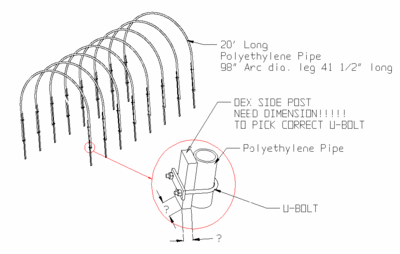

DeX-pipe holder.gif Pipe Placement.jpg

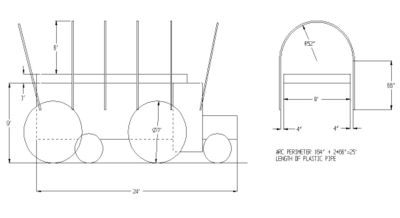

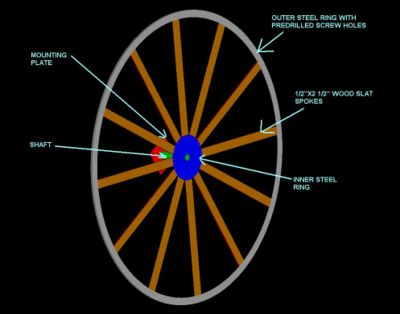

We will need 6pcs 25' plastic pipe. As arcs at the rear & at the front will be mounted with brackets, place them on angle to give better wagon look. Proposed wheel design. What size? On the scale sketch 7'dia looks about right for me.
Wagon Scetch1.jpg Wheel 3D.jpg

Repairs needed

- Air brakes (Alarm of the compressed air tanks does not stop even when the tanks are full--tank is leaking and needs to be repaired/changed)
- Several lights are broken
- Alternate gas Tank needs to be emptied a bit (-=7=-)
- Alternate gas tank (or the line?) has a whole in it which need to be repaired (-=7=-)
- Internal lights need to be checked (-=7=-)
- Would be nice to have some type of small handle on the main door

Wayne's did good work for cheap in August 2007. For air brakes they recommended a truck stop just outside Reno going towards Wadsworth on the Interstate.

2007

Repairs needed:
- Alarm of the compressed air tanks does not stop even when the tanks are full.

Pauly a very helpful guy from Sunshine Service (775-358-5486 did Dex lube, oil and filter service in 2006 for $201.14) recommends Wayne's Automotive for oil/lube change. Call Pauly for more info if needed.

Dex has an appointment for lube/oil service at Wayne's for Monday August 20th. Wayne's doesn't do air-breaks but will recommend a place.

Dex exterior

Puddle discussion: Mobile units

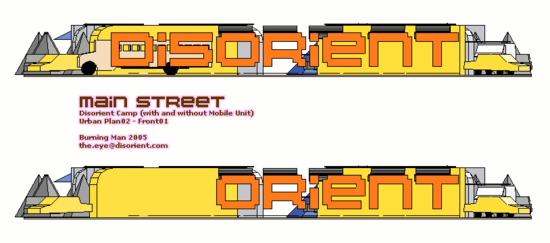

The Dex carries Disorient Signs, art installations and lounge to deep playa destinations during Burning Man 2007.

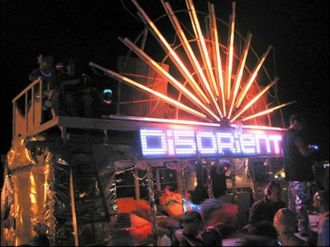

The right side of the Dex opens-up onto the Playa and carries the Small Sign. This 10-foot opening allows perceptual connections between inside and outside. A large step made of speakers allows guests to jump in and out of the lounge when the bus is stopped. DEXers also like to dance on that speaker stack.

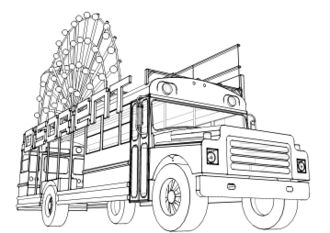

Sat night.jpg Dex04pers01.jpg Dex04pers04.jpg

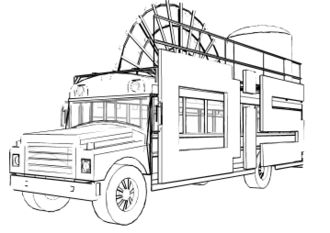

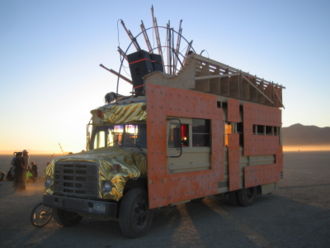

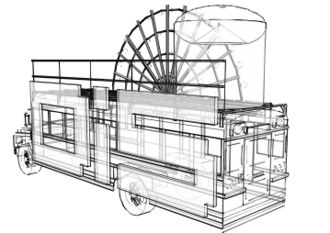

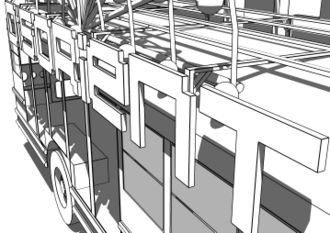

On its left side, the Dex carries three letters from the DISORIENT Sign.
Depending on which letters are added access to the gas tank and battery can be blocked. Jumper cables (leads) must be clamped and secured to the battery before putting the letters on. In addition, a large flexible tube with a large attached funnel must be secured to just outside of the gas tank entry valve so that when adding gas there is no issue with accessing the gas tank to add fuel and one only needs to open the tank and insert the tube.

IMG 0451.JPG Dex04pers03.jpg Dex04pers02.jpg

In 2005 and 2006, the last six letters of the Sign were installed in front of the DISORIENT camp. In 2007, those letters are installed on the new addition to the Disorient Express: the Rex.

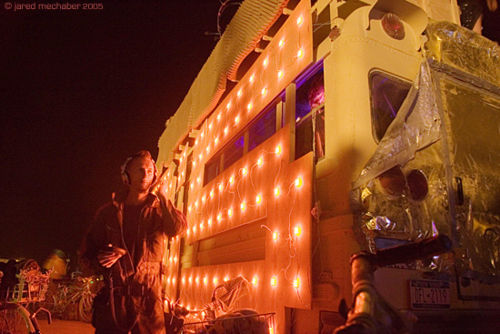

A Firmament-inspired light sculpture is installed on the roof along with other sculptures/installations by members of Disorient including inflatables by Anakin Koenig. A rack is especially designed to securely hold those pieces. The bus is equiped with a comfortable DJ booth (in a private area in the front), Disorient's sound system and a public lounge in the back.

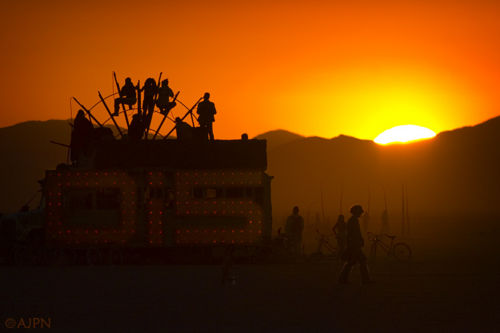

Dex artur.jpgSunrise.jpg

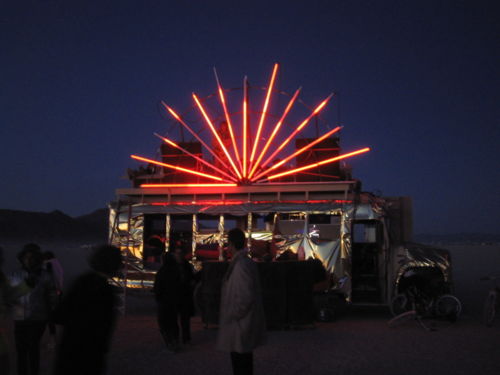

The Dex changes location several times during Burning Man but it is not meant to be a transportation unit like the Nautilus. It is a mobile installation that changes context. It is docked next to large-scale installation and gives Disorienters and Burners the opportunity to experience sculptures and the deep playa for extended periods of time. The Dex paired with selected playa installations creates a dramatic yet comfortable environment that includes dance floor, chill-out area and many art works by members of the Disorient collective. The body of the DISORIENT EXPRESS is covered with gold mylar.

Five5.jpg IMG 0415.JPG

Explore the deep playa in the comfort of your own puddle with the DISORIENT EXPRESS.

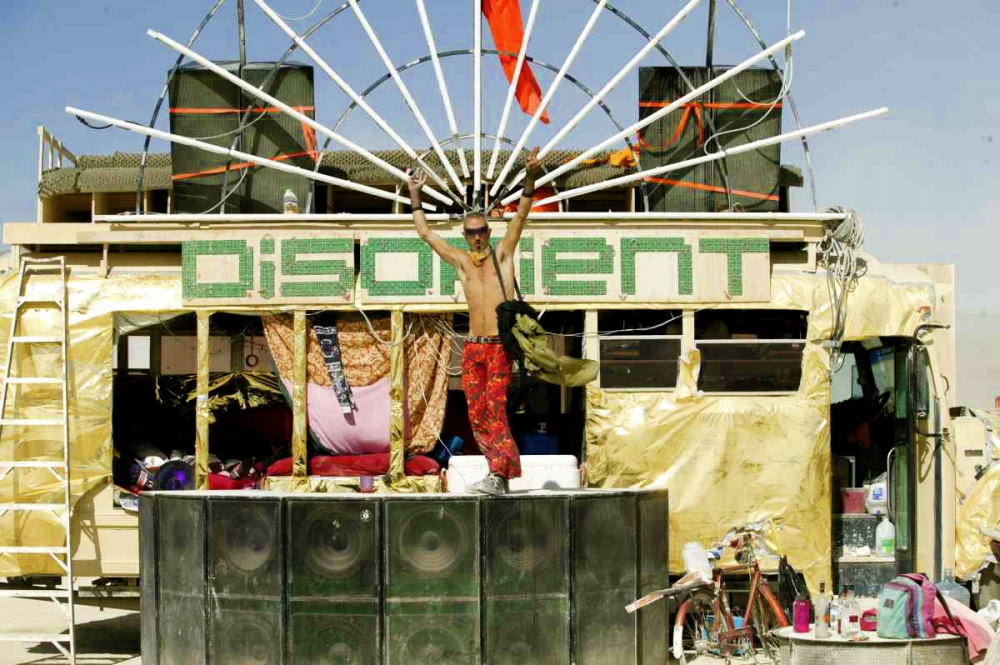

Dex Lowroad 2005.jpg



Dex Interior

Early drawings


Here is the inside of the Disorient Express deployed without outside additional snap-on modules.

Click to enlarge

When in travelling mode:
- the stage/stairs fold-up and close the large opening on the right side of the bus;
- the part of the circular sofa that is outside the volume of the bus on the left side collapses or slides-in;
- the dj booth slides back inside the volume of the bus.
The storage area in the back below the zero-gravity chair is accessible from the door (not shown on these drawings) at the back of the bus.
dex02pers02m.jpg dex02dj01m.jpg

The front of the bus is a private area with individual lockers for Disorienters. Dancing poles around the dj booth help the bus stay structurally sound.
dex02inside01m.jpg dex02deployedplan01m.jpg

Dex racks

Early drawings

There are modular racks on top of and under the Dex. The Sign and the snap-on modules will be attached to these racks.

dex03pers02m.jpg dex03pers01m.jpg
Click to enlarge

Both racks (above and under the vehicle) are built on the same principle. Each rack is made of three hollow metallic poles (6" x 4" section) that cover the entire length of the vehicle. Those poles are connected to each other and attached to strong metal beams that hold he body of the bus. Each pole has slots (every foot or so) on its sides, large enough to slide two 2x4 wooden studs next to each other.

The 2x4 studs of variable length (from 8' to 12') slide in and out of both sides of the vehicle allowing large and heavy equipment/artworks to be installed on top and on the sides of the vehicle.
dex03pers03m.jpg dex03pers04m.jpg

Possible finishes for the outside of the Dex:
- matte black (so the support disappears in the night and the attached artworks and the inside are more distinct)
- gold
- matte playa color (like the Borg containers)

<videoflash type="youtube">3Yz1MOqhmDI|425|350</videoflash>
